Sunday, January 17, 2021

Layout progress update 2

My holiday's have now come to an end and progress will no doubt slow down a little however I managed to get some more benchwork completed before going back to work.

I was asked in a comment to show a drawing of what the current plan is to be..... (it will no doubt change). Unfortunately I had lost my original drawing file and the 3rd Planit program I did years ago on an old computer. I copied the image file from a really old blog post and done some really quick and crude modifications to that image using 3D paint. The new sections of the mainline are shown in blue, while the branchline(s) is shown in green. This is for the lower level only as at this stage the top may not change. I will use Muswellbrook yard as the datum for explanation and it will be positioned on the Northern wall of my room.




There are two peninsulas within the room. One running east from the west wall and the other running north from the south wall. Both are divided by a floor to ceiling stud wall. The latter is the one I am currently working on. On the original plan the mainline was not going around this section of the layout. The main was to swing around from the east wall and run along the south wall directly into staging. The staging would be hidden below the scenic level.

The new plan is to include an interpretation of St Heliers, the junction for the short branchline to the Muswellbrook no.1 and no.2 Collieries similar to how it was in early 1950. At around 1952 there was a proposal put in place to extend the loop east to Grass Tree, addition of both up and down passing loops and up and down refuge loops. It was also to include the addition of a type O2 signal box. Colour light signals were also to be installed at both the east and west ends of this loop.

This later plan is way to big for the space that I have and I want to stick with semaphore signals only. I do however want to include the signal box. This in mind I decided to change the name of this junction from St Heliers to Heliers Junction. This gives me the ability to model the pre 52 plan with a few additions. I will also wrap the whole passing loop around the above mentioned peninsula rather than try and model it in a big straight line as it was prototypically...…much more interesting. The actual junction will be part way around this S bend. This proved rather difficult and took some carful planning and moving about of the main curves, as it was suggested by my modelling group guys I should maintain a minimum 36" radius on the mainline, a little bigger than originally planed. Between the curved track running from the south wall and the main curve around the peninsula, there is only a small section of straight track to fit the point work for the Junction.

Another issue that arose by having a 42 odd inch peninsula, that was not that big on the original plan, has now encroached on where the west to east peninsula was planned and was to include the helix to the top level. The mainline west out of Muswellbrook intended to run on a small 300mm wide scenicked section of benchwork around the outside of this helix. This would make that peninsula a 50 odd inch radius.  I have decided to move this helix to another special room under the house. Access to the helix will be from the west end swinging north out of Muswellbrook yard. I could now bring this other peninsula back to slightly bigger than 36 inches and have a full depth scene rather than 12 inches.

Back to the area I'm working on; The mainline, after it swings around the peninsula, will drop down grade and into staging along the back wall, while the coal branch will climb up and over the top of the staging. The coal loading facilities and associated sidings will be above the staging along the back wall.

The below images show this new peninsula and the single piece of Masonite roughly laid in place for the mainline. All the benchwork is pretty simple L girder and is all braced back to the bottom of the wall so I have no legs. I have used both dressed Pine and Plywood. Most of this is old crap I have saved from a couple deceased estate layouts I dismantled several years ago. It has a few holes here and there but wont be seen once the scenery base goes down.





For those that did not Follow Ian Millard's WordPress blog on his Liverpool Range layout spline construction here are a few details.
The spline sections are cut form a 3.2mm Masonite sheet in 25mm wide strips on a table saw. Two strips are laminated together using 'Sika' brand TechGrip high strength polyurethane adhesive and are laid out where the centerline of my track would be allowing this spline to naturally curve giving natural easements. Its held in place with two nails.
I made spacer blocks from a 7mm sheet of plywood and again cut these into 25mm wide strips. I then cut these into 30mm long blocks. These blocks are then glued to the outsides of this centre section about every three inches. These are held in place using spring clamps purchased on eBay. Finally another two strips of Masonite are glued to these blocks on both sides. I staggered the joins on all the strips of Masonite. I diverged these centre two sections where the points would be. Once the spline is complete I will sand the top surface with a long sanding board.
I am assembling pretty much all of my spline roadbed flat on the layout frame. I will raise and set the grade on this once I have all the spline completed to the start of the storage yard.


 See pictures below.

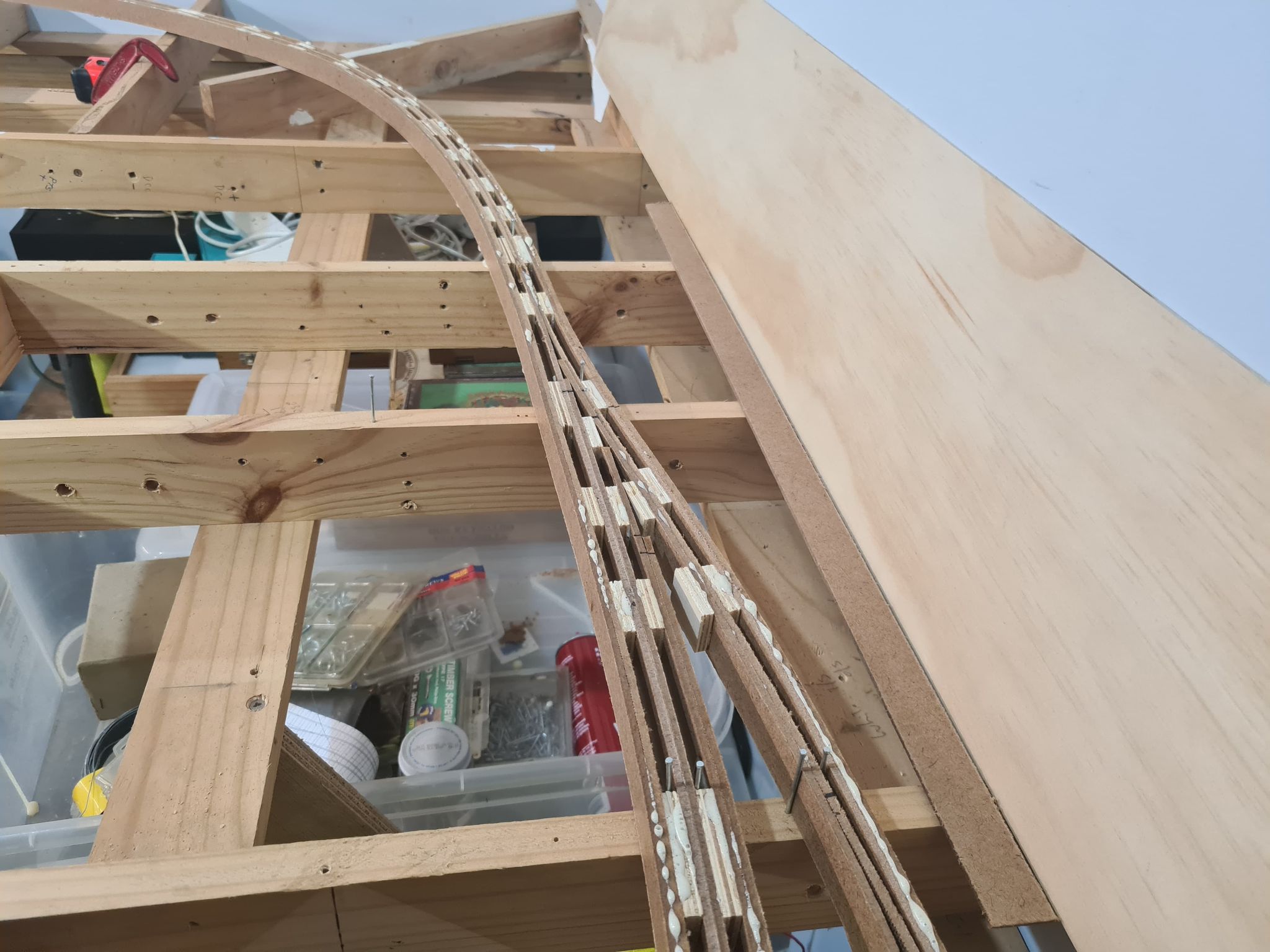

The above image shows the diverging spline for the first set of points for the loop at Heliers Junction.

Till next time.







Sunday, January 3, 2021

 WOW! Nearly six years since I've posted. How slack...…!

As one can imagine, so much can happen over six years. Family, work, car restorations, model railway building etc. I guess the most exciting and the reason for lack of progress on the Muswellbrook layout was the building of the Australian Modeller shop layout. It was built with the assistance of several close modelling friends over a four year period. This was kept pretty secret as we agreed that people should go to the shop to see it. I also kept all the build progress photos from being shown, even Peter Wilks did not see many pics until it was delivered and installed in the shop.

Several people have asked why we would take on such a project as this would no doubt slow the progress of any personnel modelling projects. It was done as a experiment to try new ideas and different products. The methods and products can be used on our own layouts in the future to produce the best results possible. I think we achieved that on the AM shop layout by the many great responses past on to us. I will post a couple pics here but be sure to get to Australian Modeller to see it for yourself.

The display was installed into the shop last September and was well received by those present that day.











2020 was certainly an interesting one. My work load, seemingly from the COVID crap, doubled and finding time to do anything for myself was difficult. It was even a struggle to get the AM shop layout finished. I could imagine how many layouts don't get to that finished stage. I really wanted the AM layout finished before it was installed. Although it reached that finished stage in the end, there was still a few things I would have like to add. It was a weight off the shoulders when it was finally gone but am very proud of it as well.

Christmas Holidays bought a welcome break and I was determined to get at least something started on the home layout. Way back in November 2013 I had started on the roundhouse for Muswellbrook depot. Even before then some of the benchwork was in place for the main yard and depot area at Muswellbrook but that's about it. The roundhouse building has not changed but some benchwork has been extended.

I have also changed some ideas on the overall plan of the layout. Originally I was going to include a section of the mainline to climb over the Liverpool range. Way too ambitious for the size of the room. I have decided to model the junction just south of Muswellbrook called St Heliers. St Heliers was the junction for a short branchline run to the Muswellbrook No.1 and No.3 colliery's. This will give some extra operation to the overall layout and fill in the story of how the area was worked, especially for coal movements. Even this location once some research was done is quite large and spread out. The 1952 track diagrams show the proposed installation of an up and down siding which extended east from St Heliers to Grasstree plus up and down refuge and Guards van sidings. It was to also include the addition of a Type O2 signal box. Although I have read that this duplication to Grasstree was abandoned for quite some time. I am unsure if the changes and Box were made at that time. Maybe the knowledgeable can confirm. Either way, this proposed 1952 plan will not fit the area I have so will stick to the pre 52 plan of just the single loop with junction. I would still like to model the signal box and will most likely change the name to Heliers, rather than St Heliers, keeps the detail police at bay!

On with construction then.
The L girder benchwork was run down the east wall of the room to accommodate the mainline. This prototypically swings right out of Muswellbrook heading east toward St Heliers.
This section will include the Y that was used for turning the Garrett locomotives. This Y will be constructed on a partial swing down section so it can be stored out the way of the isle when not in use.

The pics below show where I am up to. All the plywood section has been routed for drainage and cut and and raised for variation of ground level. The curved slots at the right of the first pic are to accept the spline sections for the mainline and Y. I used the spline roadbed technique on the AM shop layout with great success. Although a little time consuming it gives natural transitions, or easements, between curves and does not tend to 'rollercoaster' like plywood. Ian Millard perfected this technique before me on his Liverpool Range home layout and was the obvious choice.




This picture shows the start of the spline for the mainline. The widened section is for the Y.


The spline sections are now complete for the mainline and the Y but are only temporarily supported. I need to adjust the mainline to drop down from Muswellbrook yard at 1.5%. I want the line to the Y to drop away at 2% so as it sits slightly below the mainline and on the side of the hill/embankment.







That's all for now. I will create a Facebook group at some point were this will be duplicated for the die hard Facebook fans that don't follow the blog.

Lets hope its not 5 years till the next post!
